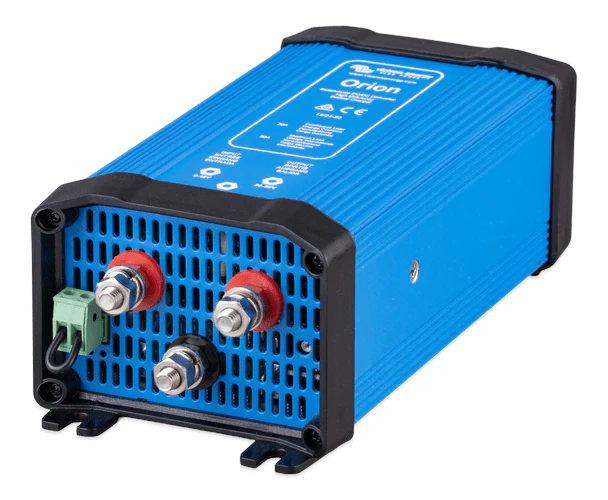

Victron Energy Orion 12/24-20 DC-DC Converter IP20 – ORI122420020
Remote on-off connector
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.
Easy to install
Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).
Low power models: please see Orion-Tr series
PLEASE CLICK HERE FOR SPEC SHEET
| Brand |
Victron Energy |
|---|---|
| Manufacturer Part Number |
ORI122420020 |
| Input Voltage Range |
9-18V |
| Output Voltage |
Adjustable 20-30V F set 26.4V |
| Under Voltage Shutdown |
8V |
| Under Voltage Restart |
10V |
| Continuous Output Current |
20A |
| DC Connection |
M6 bolts |
| Remote on-off |
Yes |
| Galvanic Isolation |
No |
| Can be connected in parallel |
Yes |
| Protection Category |
IP20 |
| Dimensions |
H65 x W88 x D195mm |
| Weight (kg) |
0.9 |
| Warranty |
5 Years |
